Hubei Xindongri Special Vehicle Co., Ltd.

Factory direct supply fire water truck

  • Category:Water Bowser Fire Truck
  • Views:1614
  • Product Manual:1.Common, middle and high level fire fighting truck products for different countries and regions; 2.Dongfeng, ISUZU, HOWO,JAC,JMC,FOTON chassis for option to meet different requests; 3.Different c
BASIC INFO Inquiry

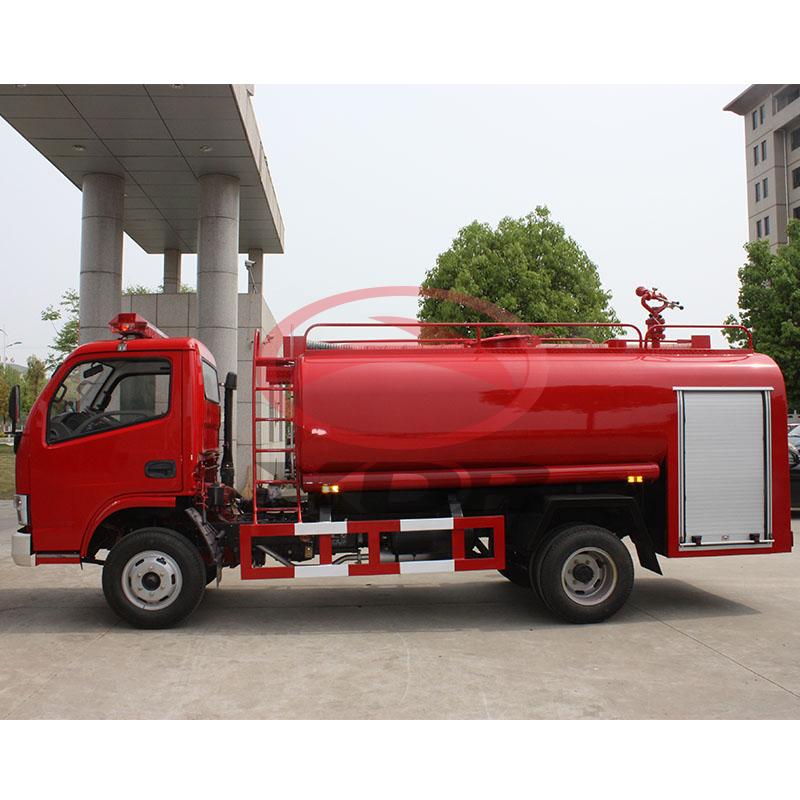

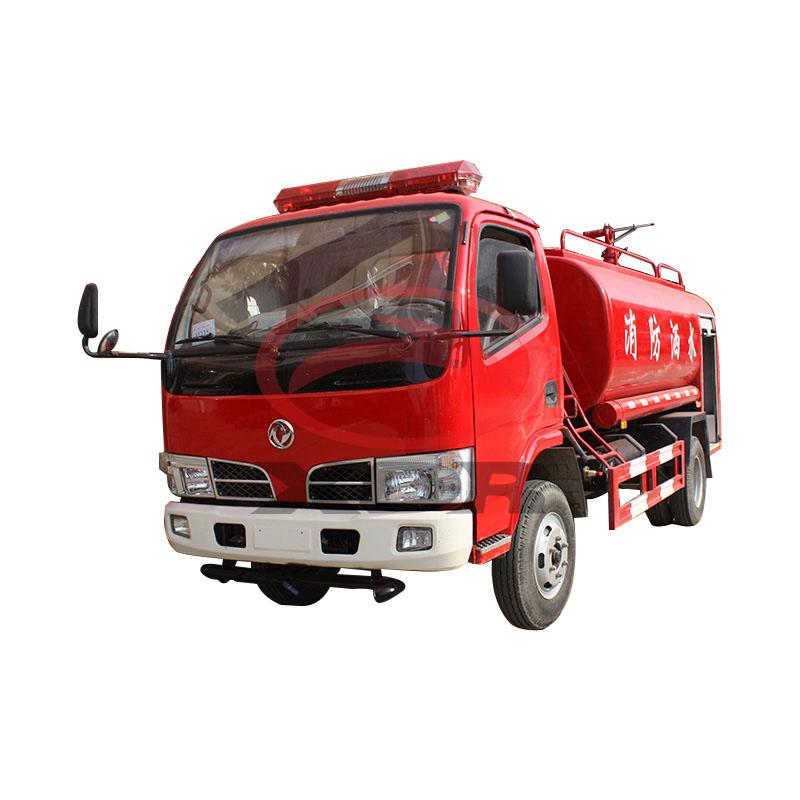

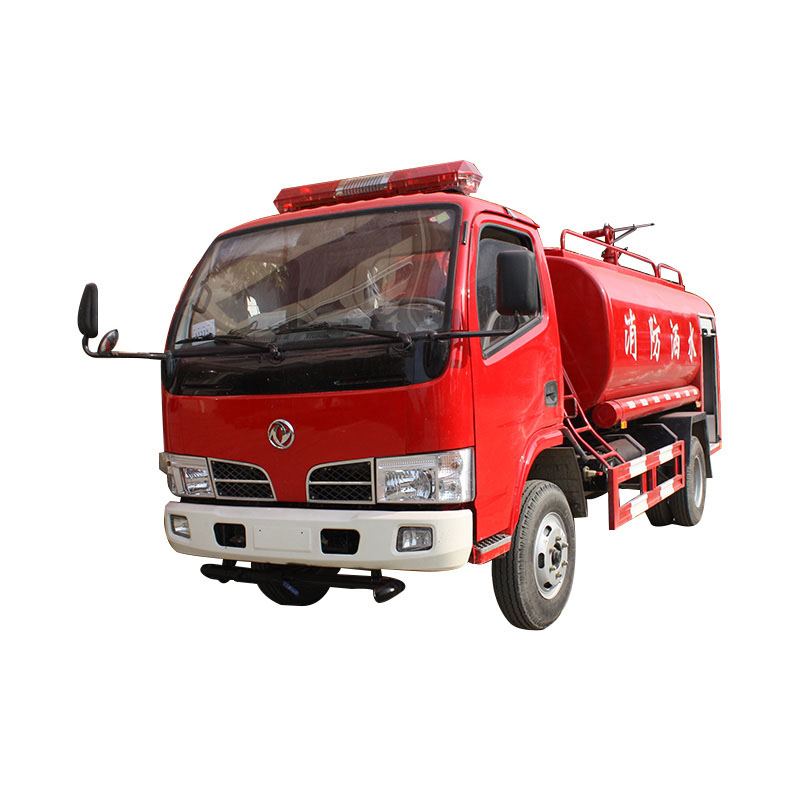

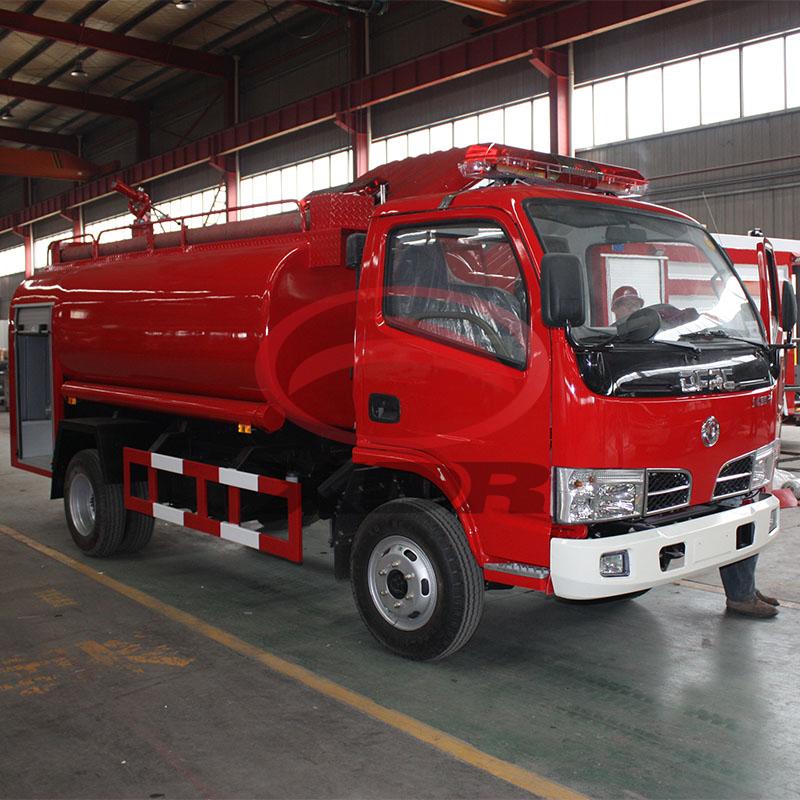

Factory direct supply fire water truck
General Vehicle Brand XDR
Chassis Brand  Dongfeng
Overall Dimension 5850x1950x2250mm
GVW/Curb Weight 6495/3365kg
Front/rear track 1506/1466mm
Approach/departure angle 20/12 (°)
Front/rear suspension 1032/1518
Leaf spring 8/10+7
Cab Cab Seat 2 seats
Air Conditioner optional
Chassis Drive Type 4x2
Transmission Manual
Wheelbase 3300
Tyre Specification 7.00R16
Tyre No. 6+1
Max Speed 90km/h
Paint Red or as request
Engine Fuel Type diesel
Engie Model CY4100Q
Engine Brand  Dongfeng
Power 60kw/82hp
Displacement 3856cc
Emmission Standard Euro 3
Superstructure front and rear cupboard room, top mounted fire monitor,rear folding ladder, top  mounted alarm and siren
Others Capacity                                                                                                                                               4000 liters/4Tons/4m3
Water flow                                                                                                                                                   20L/S
Pump PS20
Pressure 1.0Mpa
Fire distance 50m
Water suction time 50s
Water suction depth 7 m
Washing wideth  14 m
Optional Colour for optional, LHD and RHD for optional,Air conditioner for optional
