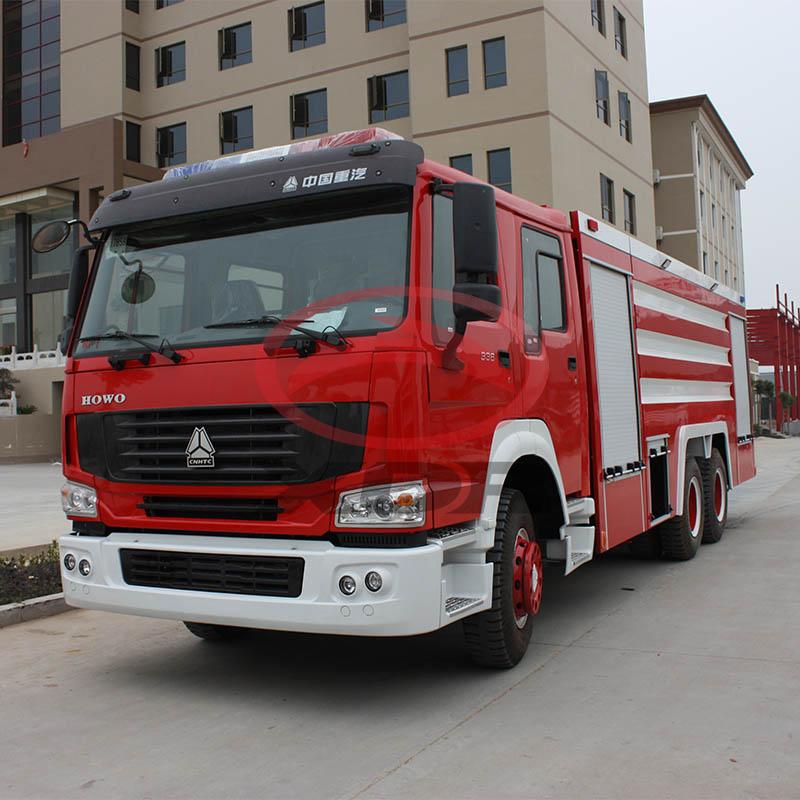

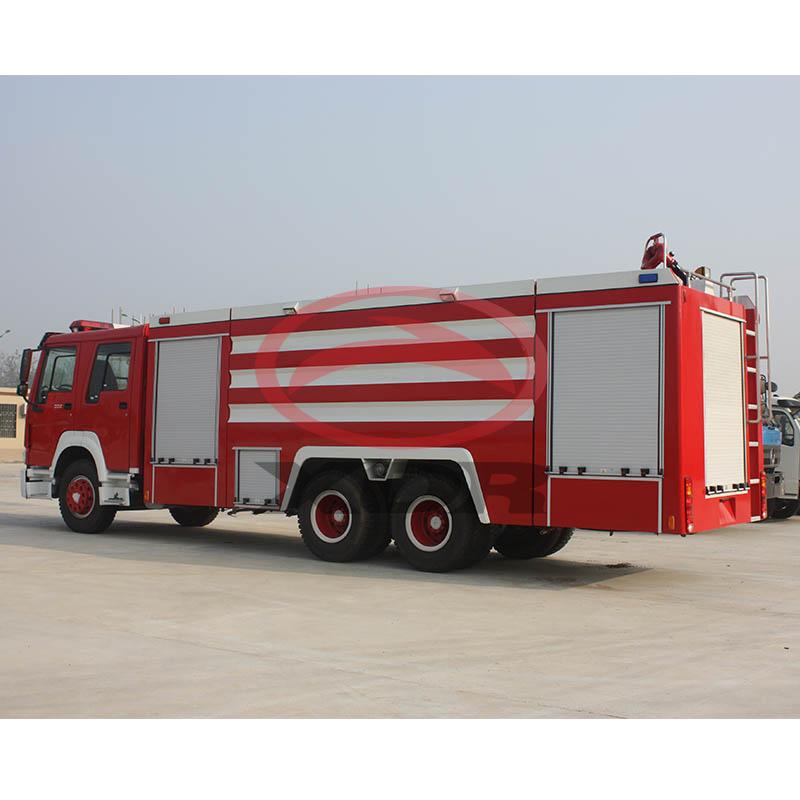

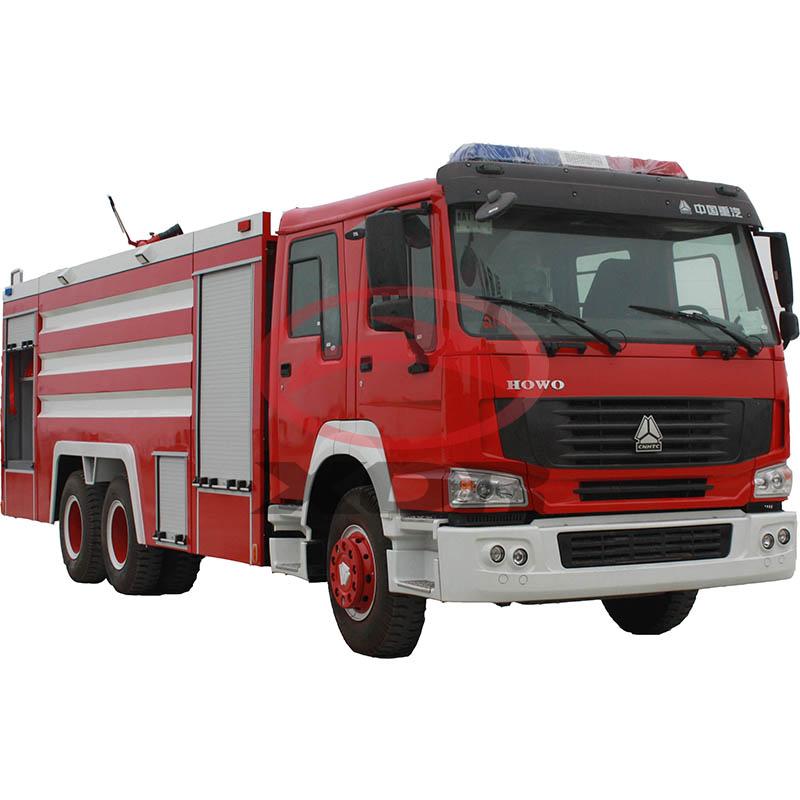

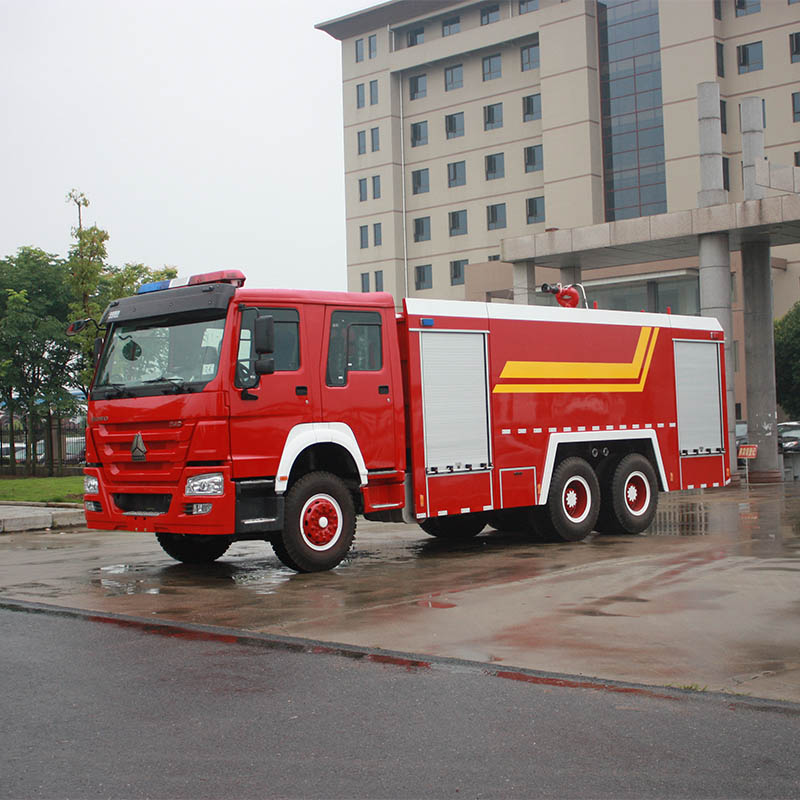

Top equipped fire monitor fire fighting truck

  • Category:Fire Truck
  • Views:1368
  • HOWO brand
  • 50L/S water flow pump
  • more than 60m fire distance
  • Product Manual:1.Common, middle and high level fire fighting truck products for different countries and regions; 2.Dongfeng, ISUZU, HOWO,JAC,JMC,FOTON chassis for option to meet different requests; 3.Different c
BASIC INFO Inquiry
Top equipped fire monitor fire fighting truck
General Vehicle Brand XDR
Chassis Brand  HOWO
Overall Dimension 9780x2500x3470mm
GVW/Curb Weight 25000/13050kg
Front/rear track 2022/1830/1830mm
Approach/departure angle 16/14 (°)
Front/rear suspension 1500/2485mm
Leaf spring 10/12,4/12
Cab Cab Seat 2+4
Air Conditioner optional
Chassis Drive Type 6x4
Transmission Manual
Wheelbase 4325+1350
Tyre Specification 11.00-20
Tyre No. 6+1
Max Speed 85km/h
Paint Red or as request
Engine Fuel Type diesel
Engie Model WD615.93E
Engine Brand  HOWO
Power 247kw/336hp
Displacement 9726cc
Emmission Standard Euro 3
Superstructure front and rear cupboard room, top mounted fire monitor,rear folding ladder, top  mounted alarm and siren
Others Tank capacity                                                                                                                                                 12000 liters/12Tons/12m3
Water flow                                                                                                                                                   50L/S
Pump PS50
Pressure 1.0Mpa
Fire distance 60m
Optional Colour for optional, LHD and RHD for optional,Air conditioner for optional
