Hubei Xindongri Special Vehicle Co., Ltd.

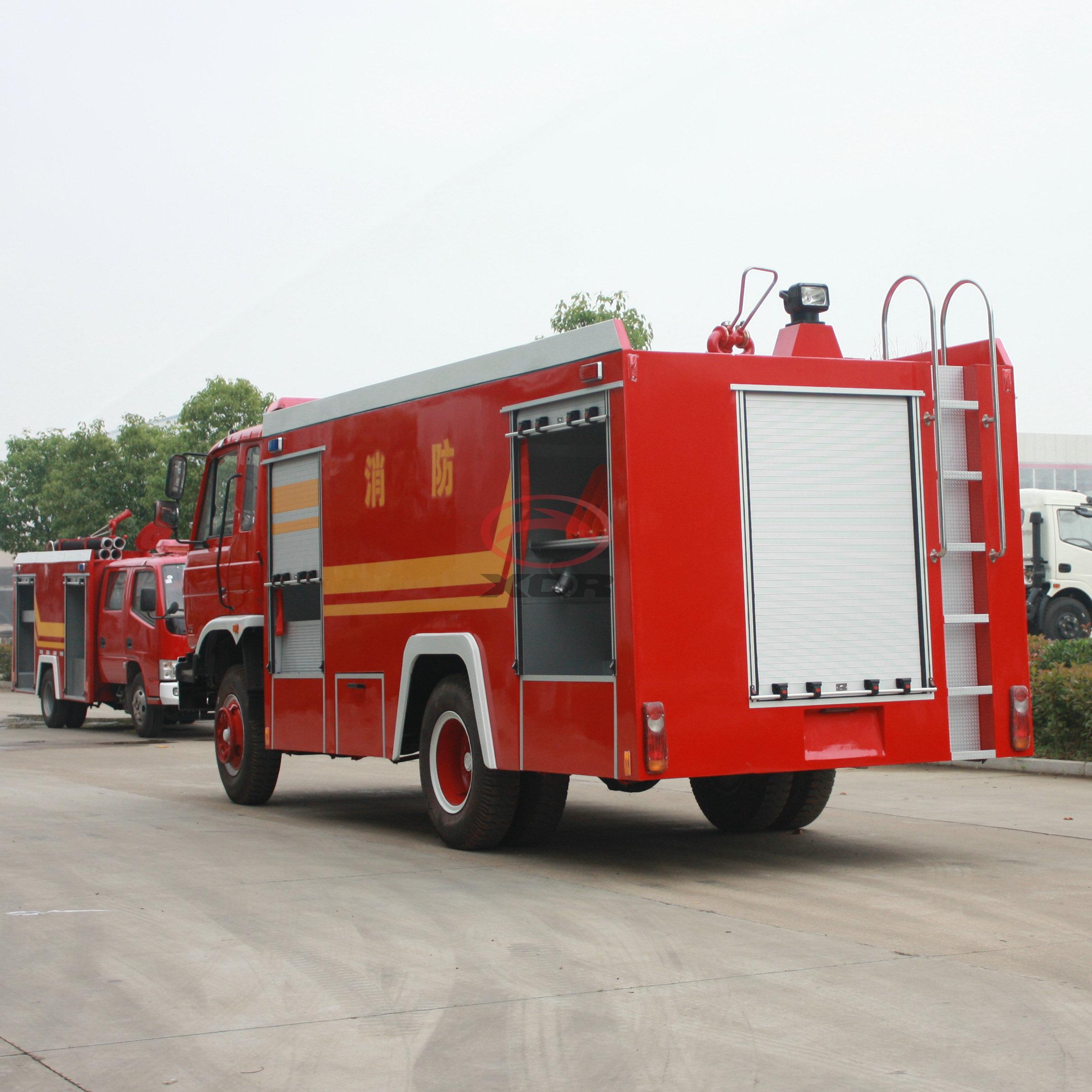

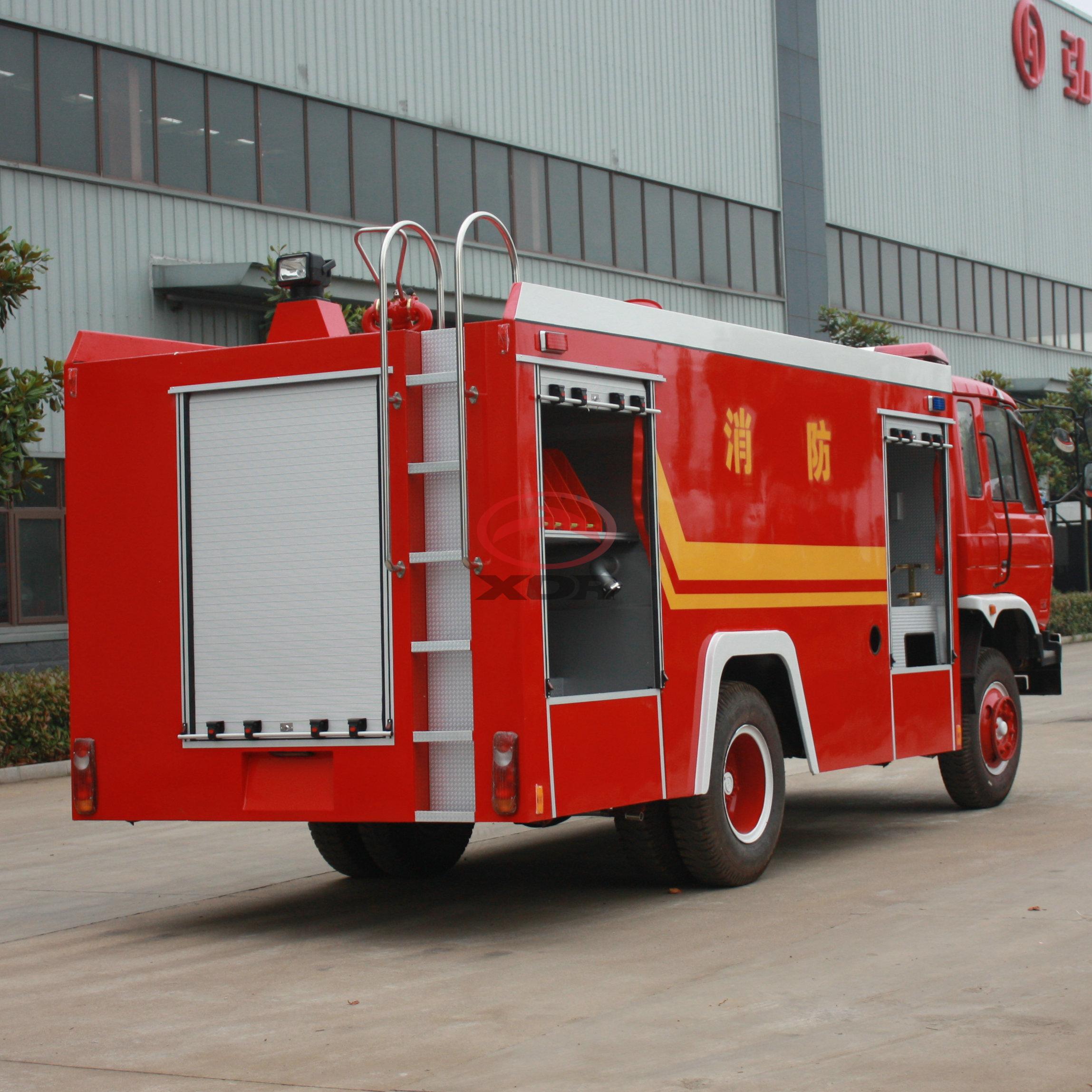

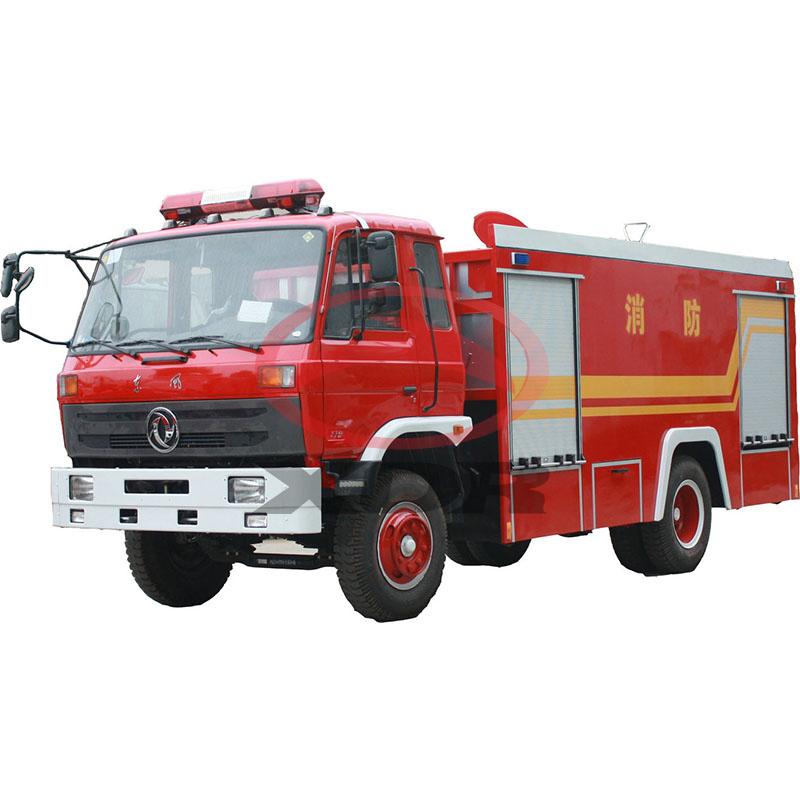

6000liters water tank fire truck

  • Category:Fire Truck
  • Views:64
  • Dongfeng Euro 3 emission
  • 6000 liters tank capacity
  • Cummins 170hp diesel engine
  • Dongfeng Euro 3 emission
  • Product Manual:1.Common, middle and high level fire fighting truck products for different countries and regions; 2.Dongfeng, ISUZU, HOWO,JAC,JMC,FOTON chassis for option to meet different requests; 3.Different c
BASIC INFO Inquiry
6000liters water tank fire truck
General Vehicle Brand XDR
Chassis Brand Dongfeng
Overall Dimension 7360x2480x3330mm
GVW/Curb Weight 13700kg
Front/rear track 1910/1800mm
Approach/departure angle 26/13 (°)
Front/rear suspension 1250/2160
Leaf spring 8/10+8
Cab Cab Seat 2+4
Air Conditioner optional
Chassis Drive Type 4x2
Transmission Manual
Wheelbase 3950
Tyre Specification 10.00-20
Tyre No. 6+1
Max Speed 95km/h
Paint Red or as request
Engine Fuel Type diesel
Engie Model ISB 170
Engine Brand Dongfeng
Power 125kw/170hp
Displacement 5900cc
Emmission Standard Euro 3
Superstructure front and rear cupboard room, top mounted fire monitor,rear folding ladder, top mounted alarm and siren
Others Capacity 6000 liters
water flow 40L/S
Pump PS40
Pressure 1.0Mpa
Fire distance 55m
Optional Colour for optional, LHD and RHD for optional,Air conditioner for optional
