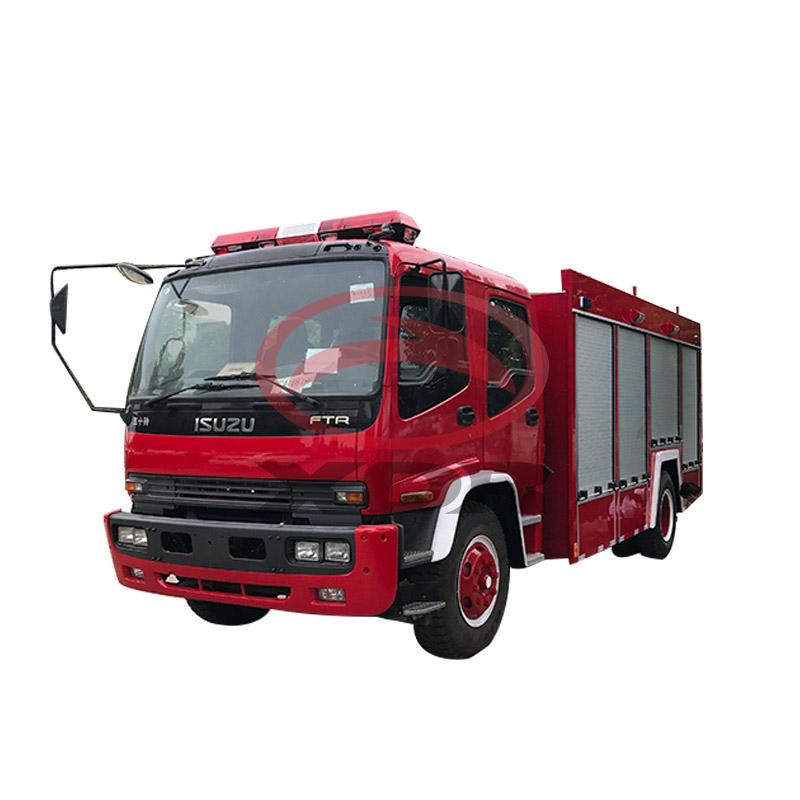

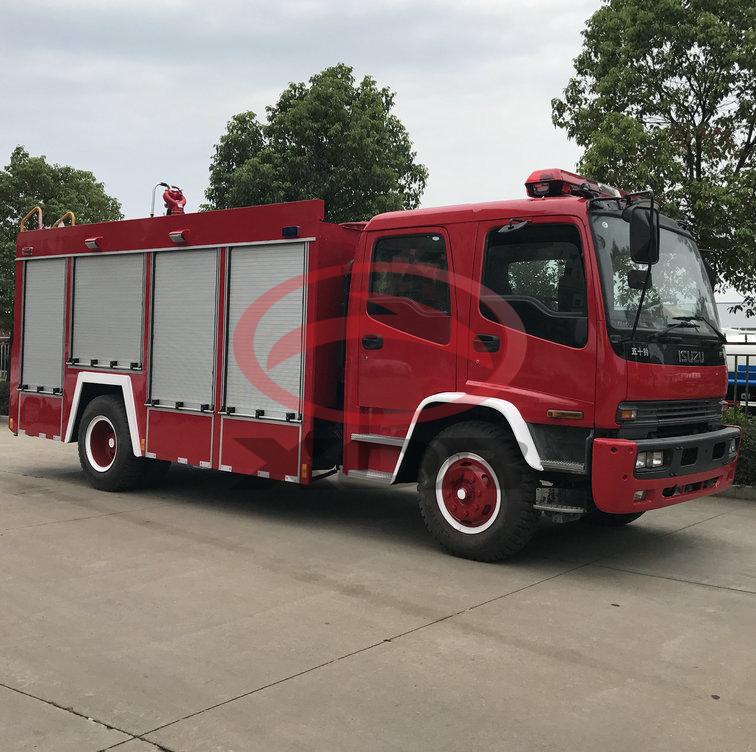

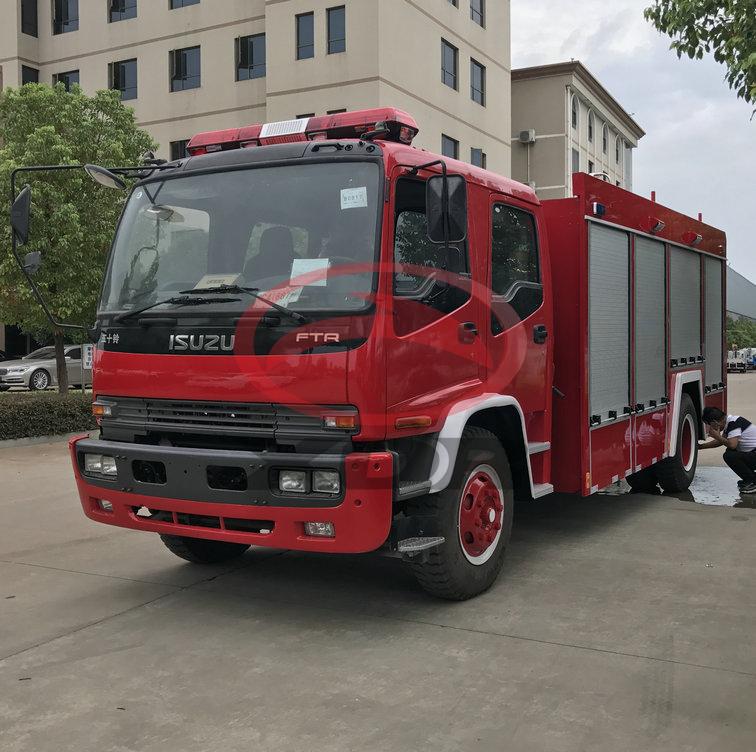

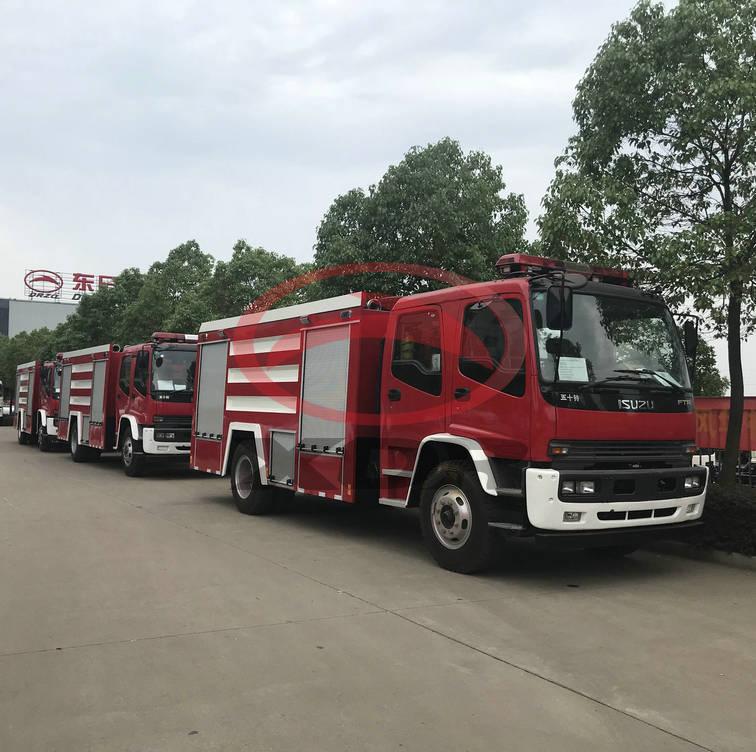

Janpan FTR 6CBM fire engine

  • Category:Products
  • Views:1330
  • ISUZU high quality FTR truck
  • 6000 liters tank capacity
  • LHD ISUZU FTR truck
  • Product Manual:1.Common, middle and high level fire fighting truck products for different countries and regions; 2.Dongfeng, ISUZU, HOWO,JAC,JMC,FOTON chassis for option to meet different requests; 3.Different c
BASIC INFO Inquiry
Janpan FTR 6CBM fire engine
General Vehicle Brand XDR
Chassis Brand  ISUZU
Overall Dimension 8430x2500x3660mm
GVW/Curb Weight 15000/8400kg
Front/rear track 1960/1855mm
Approach/departure angle 26/12 (°)
Front/rear suspension 1335/2265
Leaf spring 7/7+5
Cab Cab Seat 2+4
Air Conditioner optional
Chassis Drive Type 4x2
Transmission Manual
Wheelbase 4700
Tyre Specification 10.00-20
Tyre No. 6+1
Max Speed 85km/h
Brake Air brake
Engine Fuel Type diesel
Engie Model 4HK1-TCG40
Engine Brand  Dongfeng
Power 139kw/190hp
Displacement 5193cc
Emmission Standard Euro 5
Superstructure front and rear cupboard room, top mounted fire monitor,rear folding ladder, top  mounted alarm and siren
Others Capacity 6000 liters/6Tons/6m3
water flow                                                                                                                                                   30L/S
Pump PS30
Pressure 1.0Mpa
Fire distance 50m
Optional Colour for optional, LHD and RHD for optional,Air conditioner for optional
