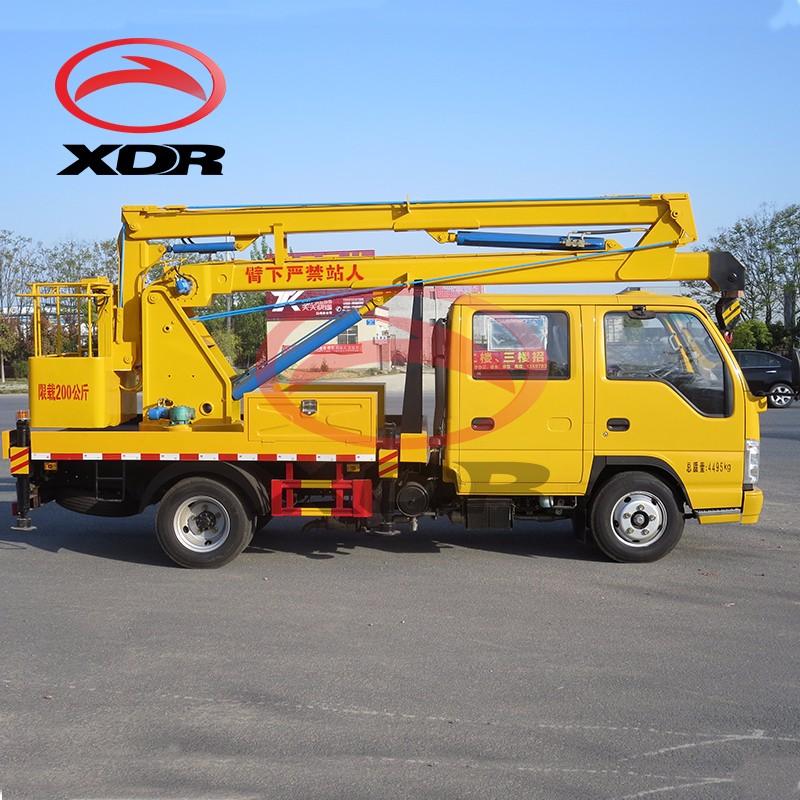

1.Technical Data
|
Vehicle Parameters |
|||
|
General |
Vehicle Model |
YZR5040JGK12Q |
|
|
Vehicle Brand |
XDR |
||
|
Chassis Brand |
Isuzu |
||
|
Overall Dimension(mm) |
5998×2000×2960 |
||
|
GVW/Curb Weight(kg) |
4495/4170 |
||
|
Chassis Parameters |
|||
|
Cab |
Cab Seat |
2 |
|
|
Air Conditioner |
Optional |
||
|
Engine |
Fuel Type |
diesel |
|
|
Engie Model |
4KH1CN5LS |
||
|
Engine Brand |
Isuzu |
||
|
Power |
98hp |
||
|
Displacement(cc) |
2999 |
||
|
Emmission Standard |
Euro5 |
||
|
Chassis |
Drive Type |
4*2 |
|
|
Transmission |
5 speed, Manual |
||
|
Wheelbase(mm) |
3360 |
||
|
Tyre Specification |
7.00R16 |
||
|
Tyre No.(pcs) |
6+1 |
||
|
Max Speed(km/h) |
105 |
||
|
Paint |
Yellow |
||
|
Aerial platform structure parameters |
|||
|
working height(m) |
12 |
Maximum working radius(m) |
6.2 |
|
Arm Material |
carbon steel Q345 |
Arm Thickness |
|
|
Working height at Max.working radius(m) |
8.1 |
Working radius at Max.working height(m) |
3 |
|
Outrigger distance(mm) |
3040*2890 |
Platform average rise speed(m/s) |
≤0.4 |
|
Platform average fall speed(m/s) |
≤0.4 |
Rotation speed (1r/min) |
1 |
|
Arm structure type |
Three section |
Outrigger stretch time (s) |
40 |
|
Rotation |
360°continuous rotary |
Outrigger |
H type，independently |
2.Basic function and safety equipment
1.Interlock device for up and down
Basically used for the working arm and outrigger safety operation,prevent misoperation
2.Level indication device
Check out the balance of whole truck
3.emergent electric pump
when there is something wrong with the engine and main pump,it can send operator to ground When engine and main pump （optional）
4.Night safety warning device
Different lights installed
5.Work platform lighting device
360degree adjustable searchlight installed
6.engine remote ignition/flameout
installed on working platform
7.Real-time communication
Wireless intercom devices provided（optional）
8.Hook telescopic arm
Hook can stretch out800-1000mm（optional
9.Hook lifting device
Control hook up and down（optional）
3.Packing and transportation: Wax
(1) We spray wax to protect the truck before shipment.
(2) Waterproof cover and net can be provided for customer's optional choice.
(3) If only superstructure body which loaded in container,suitable strong steel support is provided.
(4)Standard container,Frame container,Open container,Roro ship are regular sea way shipment way. Road transportation is for road way delivery.
4.Payment terms
-
T/T
-
L/C
5.Delivery time
Generally 25days
6.Our advantages
1.Having 15 years experience in special trucks
2.Good quality :based on the standard of international request.
3.Competitive price:more reasonable than most suppliers
4.On-line delivery time:shipment as contract once we confirm
