Hubei Xindongri Special Vehicle Co., Ltd.

Water Foam Fire Truck

  • Category:Foam fire truck
  • Views:16
  • Brand XDR
  • Product origin Hubei,China
  • Delivery time within 30 days
  • Brand XDR
  • Product Manual:1.Common, middle and high level fire fighting truck products for different countries and regions; 2.Dongfeng, ISUZU, HOWO,JAC,JMC,FOTON chassis for option to meet different requests; 3.Different c
BASIC INFO Inquiry

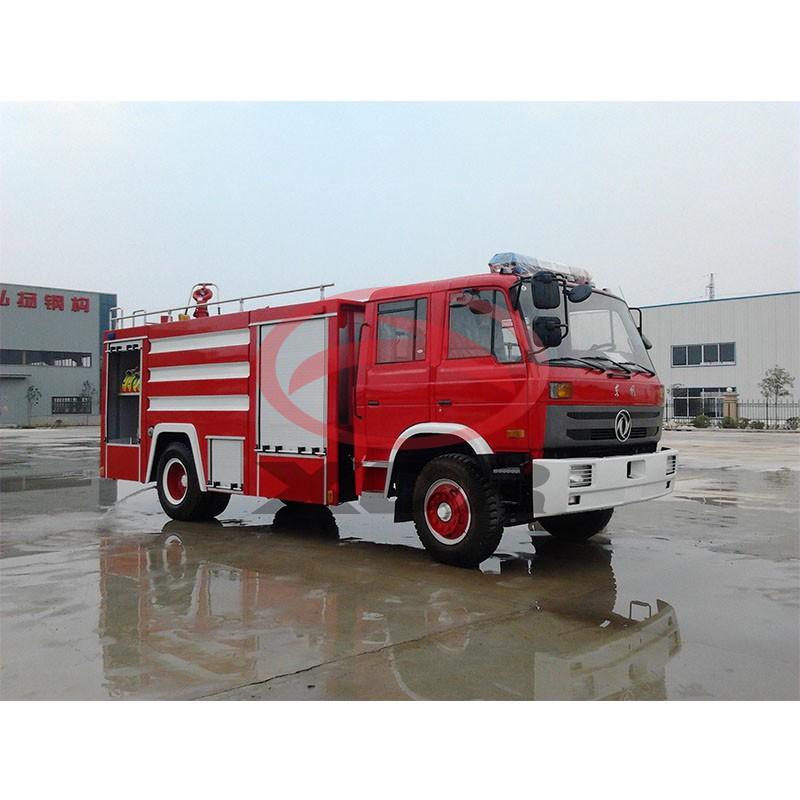

water foam fire truck
General Vehicle Brand XDR
Chassis Brand  Dongfeng
Overall Dimension 7885x2490x3400mm
GVW/Curb Weight 13850/8400kg
Front/rear track 1940/1860mm
Approach/departure angle 25/14 (°)
Front/rear suspension 1258/1208
Leaf spring 8/10+8
Cab Cab Seat 2+4
Air Conditioner optional
Chassis Drive Type 4x2
Transmission Manual
Wheelbase 4500
Tyre Specification 10.00-20
Tyre No. 6+1
Max Speed 90km/h
Paint Red or as request
Engine Fuel Type diesel
Engie Model B190 30
Engine Brand  Dongfeng
Power 140kw/190hp
Displacement 5900cc
Emmission Standard Euro 3
Superstructure front and rear cupboard room, top mounted fire monitor,rear folding ladder, top  mounted alarm and siren
Others Capacity water: 6m3, foam:2m3
water flow 32L/S
Pump 40L/S
Pressure 1.0Mpa
Fire distance water distance:≥60m , foam distance≥50m
Optional Colour for optional, LHD and RHD for optional,Air conditioner for optional
