Hubei Xindongri Special Vehicle Co., Ltd.

China Top Quality Fire Fighting Vehicle

  • Category:Foam fire truck
  • Views:17
  • Brand XDR
  • Product origin Hubei,China
  • Delivery time within 30 days
  • Brand XDR
  • Product Manual:1.Common, middle and high level fire fighting truck products for different countries and regions; 2.Dongfeng, ISUZU, HOWO,JAC,JMC,FOTON chassis for option to meet different requests; 3.Different c
BASIC INFO Inquiry

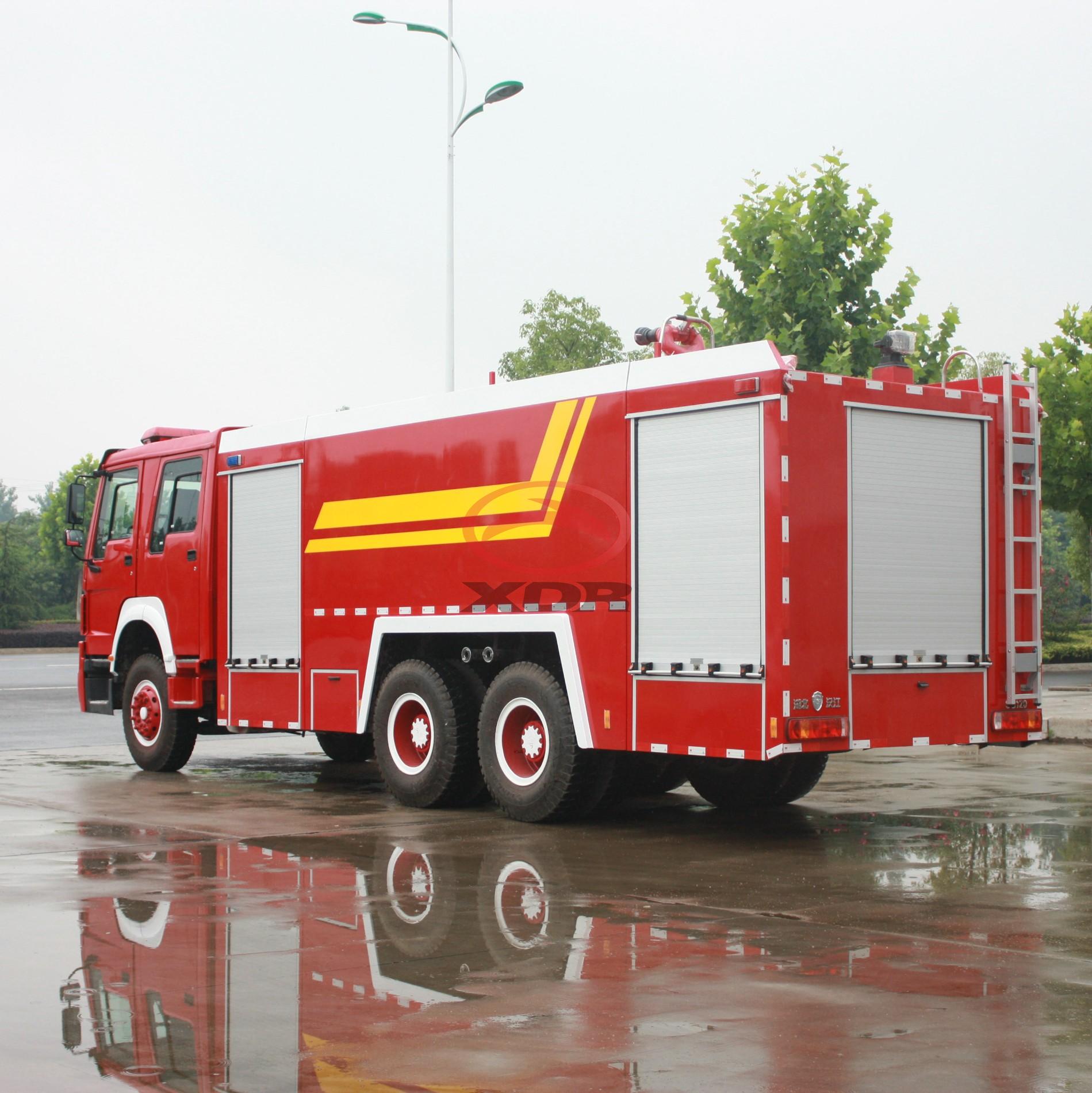

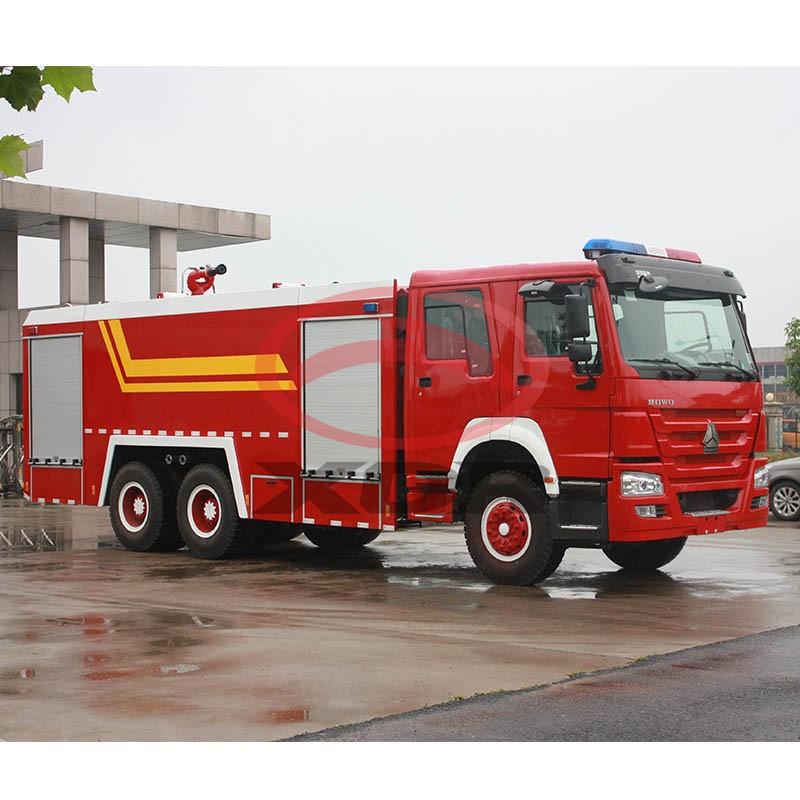

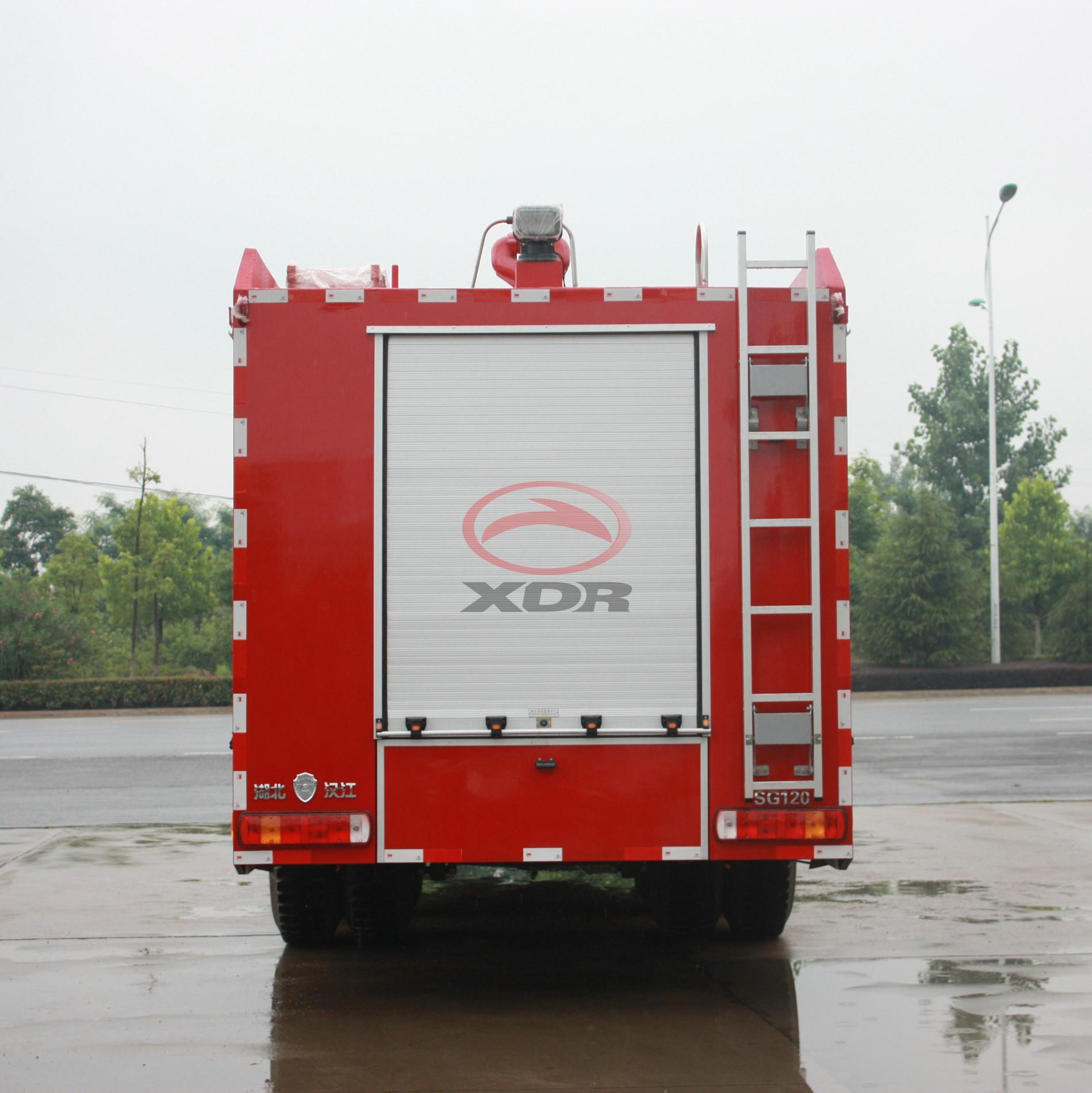

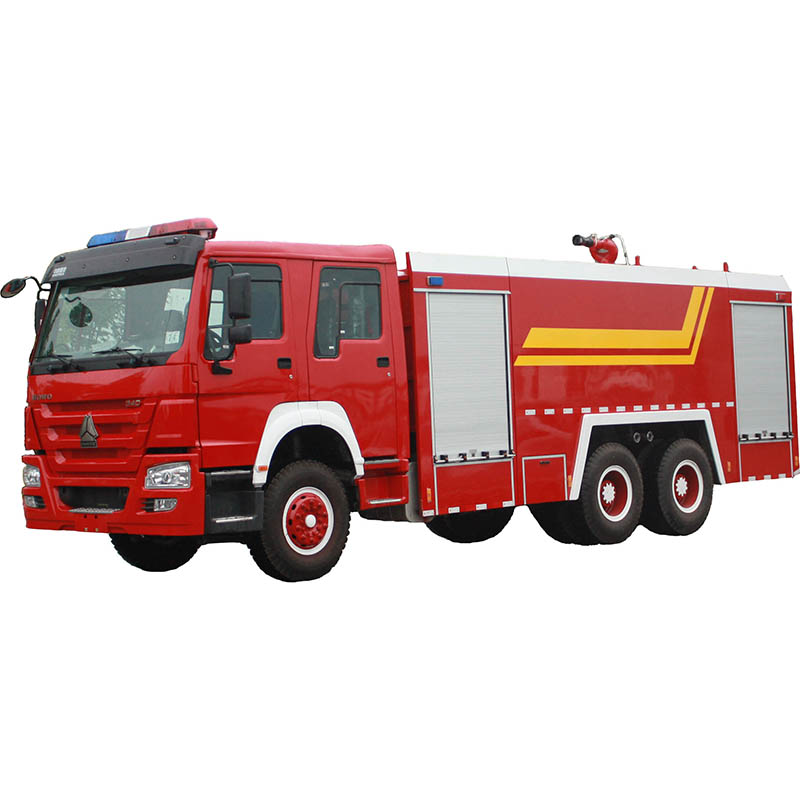

China top quality fire fighting vehicle
General Vehicle Brand XDR
Chassis Brand  Sinotruk HOWO
Overall Dimension 10210x2500x3510mm
GVW/Curb Weight 31700/15250kg
Front/rear track 2022/1830/1830mm
Approach/departure angle 16/14 (°)
Front/rear suspension 1500/2680
Leaf spring 10/12'
Cab Cab Seat 5,6
Air Conditioner optional
Chassis Drive Type 6x4
Transmission Manual
Wheelbase 4600+1350
Tyre Specification 12.00-20
Tyre No. 10+1
Max Speed 90km/h
Paint Red or as request
Engine Fuel Type diesel
Engie Model D10.38-40
Engine Brand  HOWO
Power 276kw/380hp
Displacement 9726cc
Emmission Standard Euro 4
Superstructure front and rear cupboard room, top mounted fire monitor,rear folding ladder, top  mounted alarm and siren
Others Tank capacity                                                                                                                                                 16000 liters/16Tons/16m3
water flow                                                                                                                                                   50L/S
Pump PS50
Water suction time ≤35s
Water suction depth ≤7m
Fire distance ≥60m
Optional Colour for optional, LHD and RHD for optional,Air conditioner for optional
