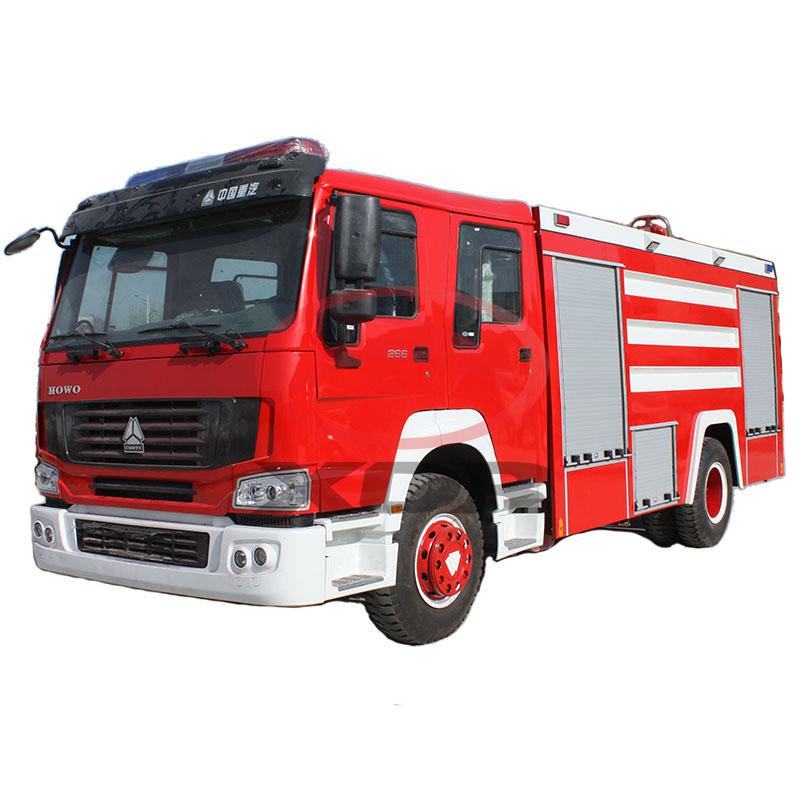

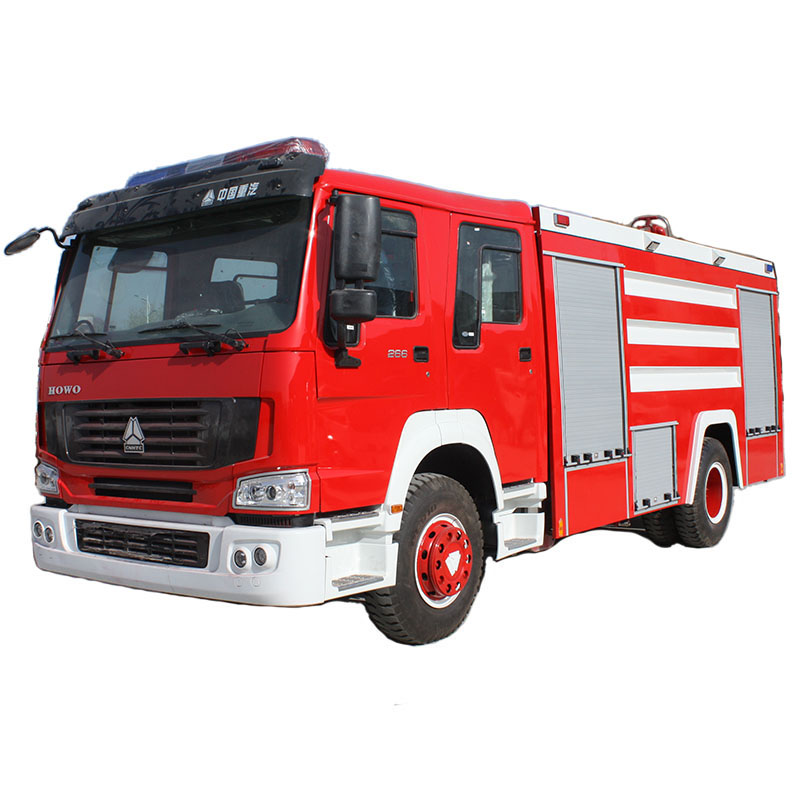

10 tons fire engine truck

Category：Fire Truck
Views：1539
10m3 tank capacity
10Tons loading capacity
HOWO brand 10000 liters capacity
Product Manual：1.Common, middle and high level fire fighting truck products for different countries and regions; 2.Dongfeng, ISUZU, HOWO,JAC,JMC,FOTON chassis for option to meet different requests; 3.Different c

BASIC INFO Inquiry

10 tons fire engine truck
General	Vehicle Brand	XDR
	Chassis Brand	HOWO
	Overall Dimension	8625x2500x3640mm
	GVW/Curb Weight	15520/10245kg
	Front/rear track	1930/1800mm
	Approach/departure angle	14/12 (°)
	Front/rear suspension	1500/2370mm
	Leaf spring	11/9+8
Cab	Cab Seat	2+4
	Air Conditioner	optional
Chassis	Drive Type	4x2
	Transmission	Manual
	Wheelbase	4600
	Tyre Specification	12.00-20
	Tyre No.	6+1
	Max Speed	90km/h
	Paint	Red or as request
Engine	Fuel Type	diesel
	Engie Model	MC05.18-50
	Engine Brand	HOWO
	Power	132kw/180hp
	Displacement	4580cc
	Emmission Standard	Euro 5
Superstructure	front and rear cupboard room, top mounted fire monitor,rear folding ladder, top mounted alarm and siren


Others	water flow	40L/S
	Pump	PS40
	Pressure	1.0Mpa
	Fire distance	50m
Optional	Colour for optional, LHD and RHD for optional,Air conditioner for optional
