Hubei Xindongri Special Vehicle Co., Ltd.

water tank fire fighting truck

  • Category:Fire Truck
  • Views:31
  • ISUZU brand
  • Japanese brand truck
  • 3360mm wheelbase
  • Product Manual:1.Common, middle and high level fire fighting truck products for different countries and regions; 2.Dongfeng, ISUZU, HOWO,JAC,JMC,FOTON chassis for option to meet different requests; 3.Different c
BASIC INFO Inquiry

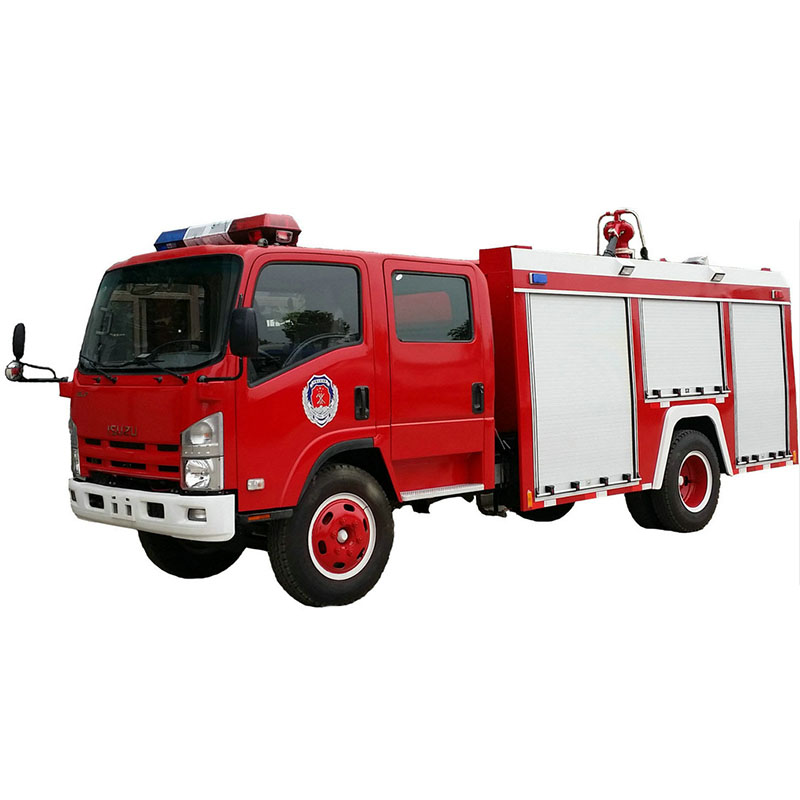

water tank fire fighting truck
General Vehicle Brand XDR
Chassis Brand ISUZU
Overall Dimension 6360x2000x2740mm
GVW/Curb Weight 6530kg
Front/rear track 1504/1425mm
Approach/departure angle 24/14 (°)
Front/rear suspension 1015/1890
Leaf spring 8/6+5
Cab Cab Seat 5,6
Air Conditioner optional
Chassis Drive Type 4x2
Transmission Manual
Wheelbase 3360
Tyre Specification 7.00R16
Tyre No. 6+1
Max Speed 95km/h
Paint Red or as request
Engine Fuel Type diesel
Engie Model 4KH1CN5LS
Engine Brand ISUZU
Power 72kw/98hp
Displacement 2999cc
Emmission Standard Euro 5
Superstructure front and rear cupboard room, top mounted fire monitor,rear folding ladder, top mounted alarm and siren
Others Capacity 3000 liters/3Tons/3m3
water flow 20L/S
Pump PS20
Pressure 1.0Mpa
Fire distance 45m
Optional Colour for optional, LHD and RHD for optional,Air conditioner for optional
