Hubei Xindongri Special Vehicle Co., Ltd.

Diesel engine fire vehicle

  • Category:Products
  • Views:186
  • Dongfeng brand
  • 3300mm wheelbase truck
  • 4x2 chassis
  • Dongfeng brand
  • Product Manual:1.Common, middle and high level fire fighting truck products for different countries and regions; 2.Dongfeng, ISUZU, HOWO,JAC,JMC,FOTON chassis for option to meet different requests; 3.Different c
BASIC INFO Inquiry

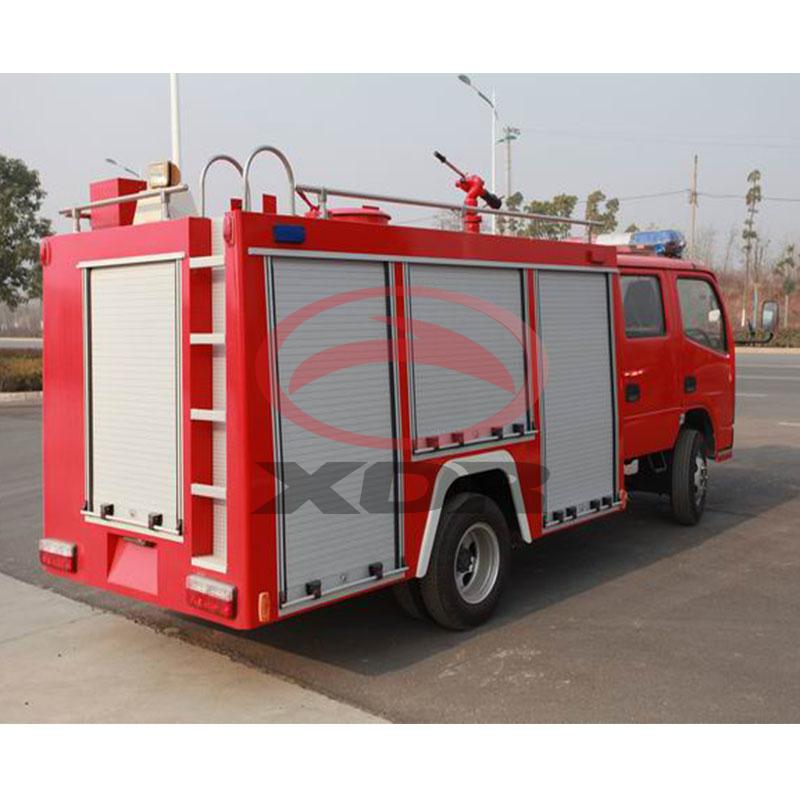

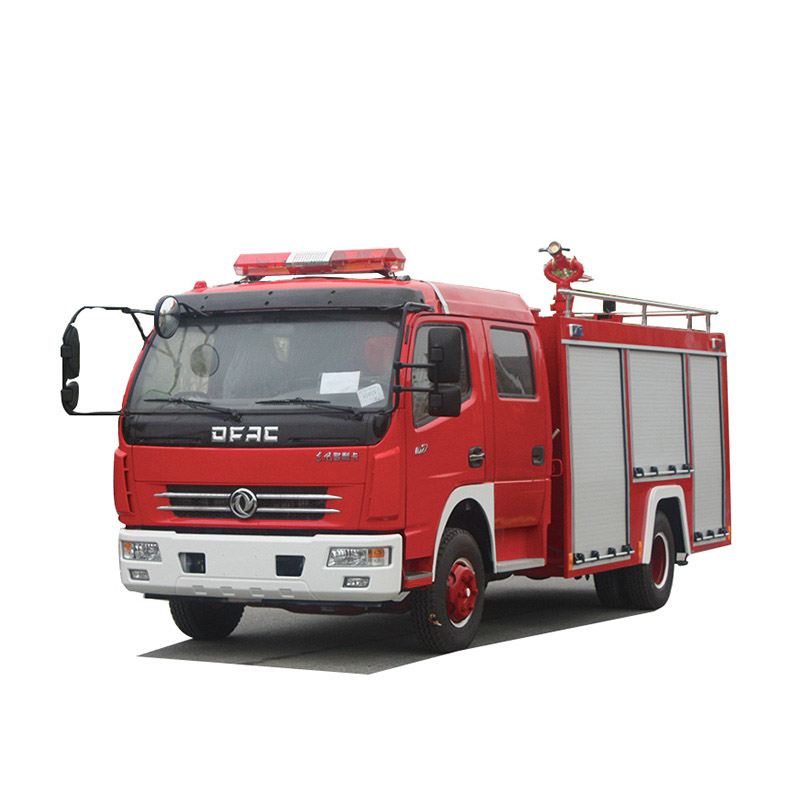

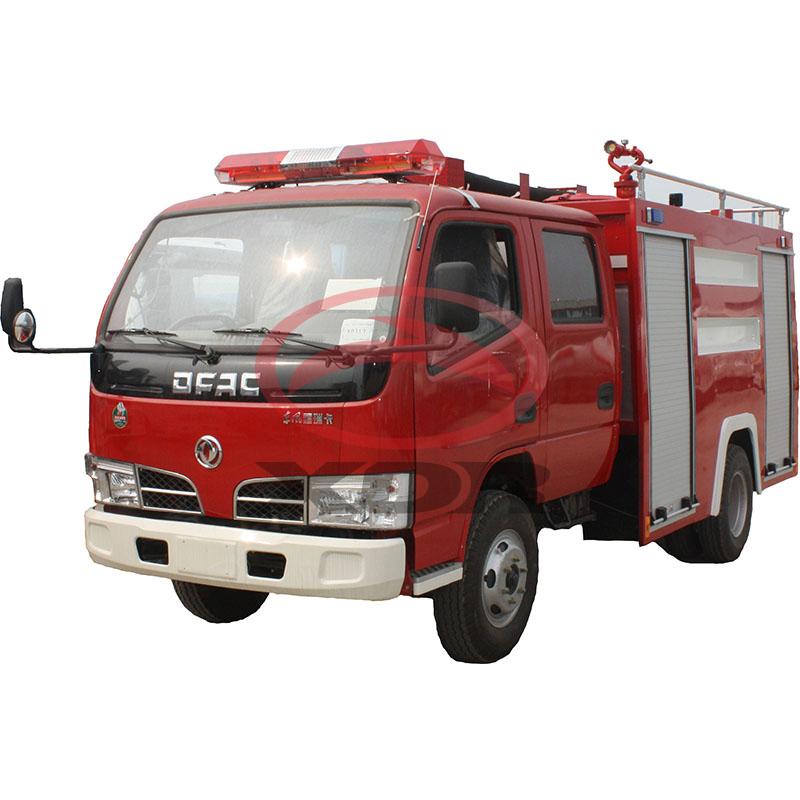

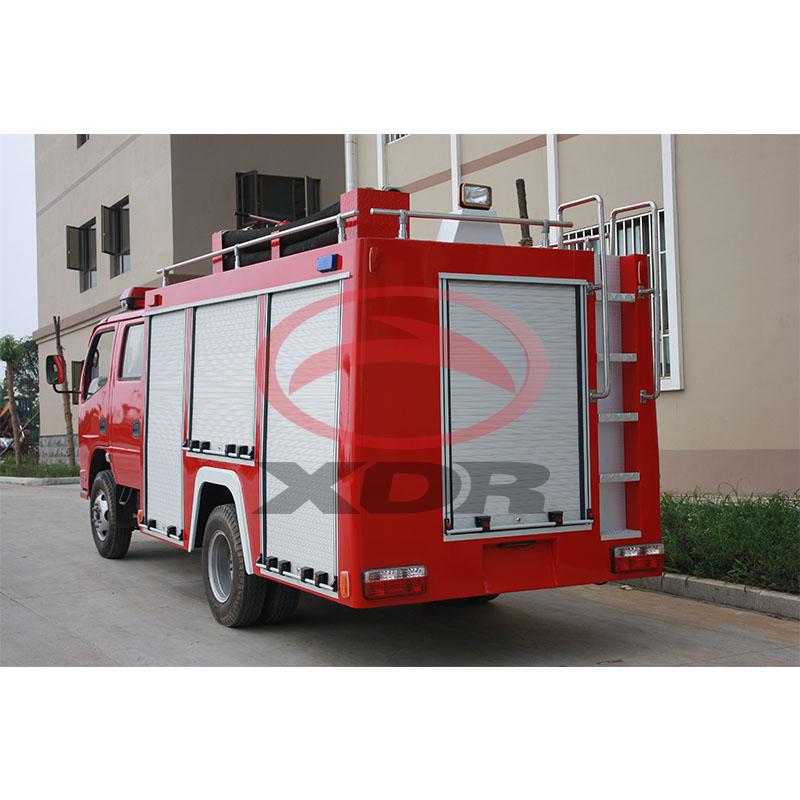

Diesel engine fire vehicle
General Vehicle Brand XDR
Chassis Brand Dongfeng
Overall Dimension 6290x1980x2660mm
GVW/Curb Weight 6495/2350kg
Front/rear track 1506/1466mm
Approach/departure angle 20/11 (°)
Front/rear suspension 1040/1940
Leaf spring 8/9+5
Cab Cab Seat 5,6
Air Conditioner optional
Chassis Drive Type 4x2
Transmission Manual
Wheelbase 3300
Tyre Specification 7.00R16
Tyre No. 6+1
Max Speed 90km/h
Paint Red or as request
Engine Fuel Type diesel
Engie Model CY4100Q
Engine Brand Dongfeng
Power 60kw/82hp
Displacement 3856cc
Emmission Standard Euro 3
Superstructure front and rear cupboard room, top mounted fire monitor,rear folding ladder, top mounted alarm and siren
Others Capacity 3000 liters/3Tons/3m3
water flow 20L/S
Pump PS20
Pressure 1.0Mpa
Fire distance 45m
Optional Colour for optional, LHD and RHD for optional,Air conditioner for optional
