High quality Euro 5 emission fire truck

Category：Fire Truck
Views：1448
ISUZU brand fire truck
Euro 4 or Euro 5 emission available
LHD only fire truck
Product Manual：1.Common, middle and high level fire fighting truck products for different countries and regions; 2.Dongfeng, ISUZU, HOWO,JAC,JMC,FOTON chassis for option to meet different requests; 3.Different c

BASIC INFO Inquiry

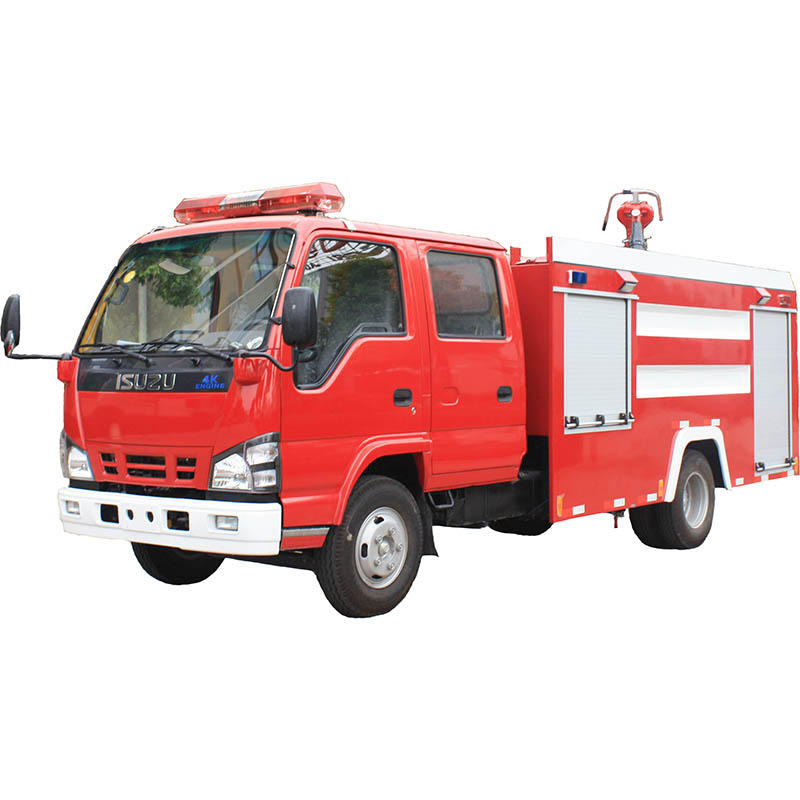

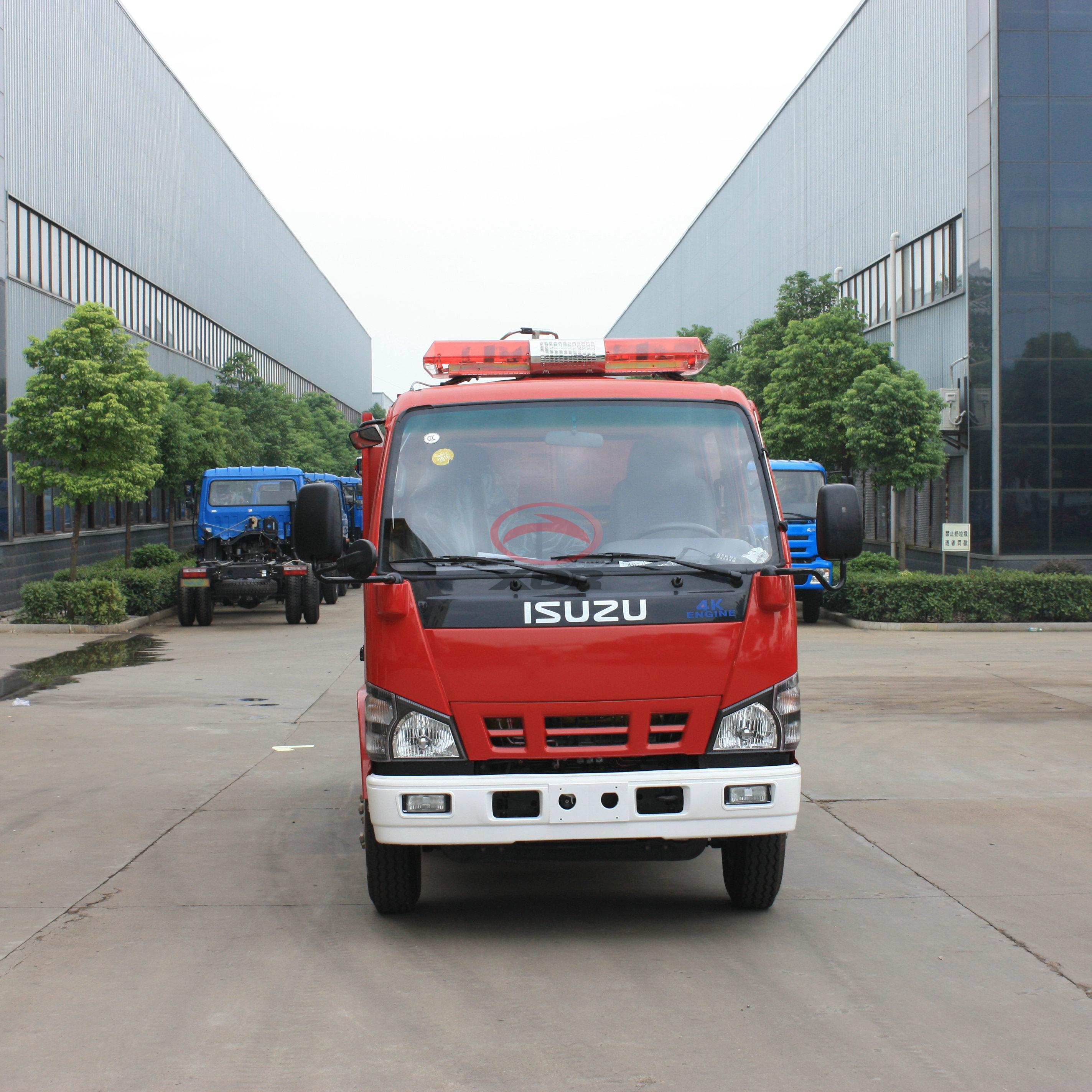

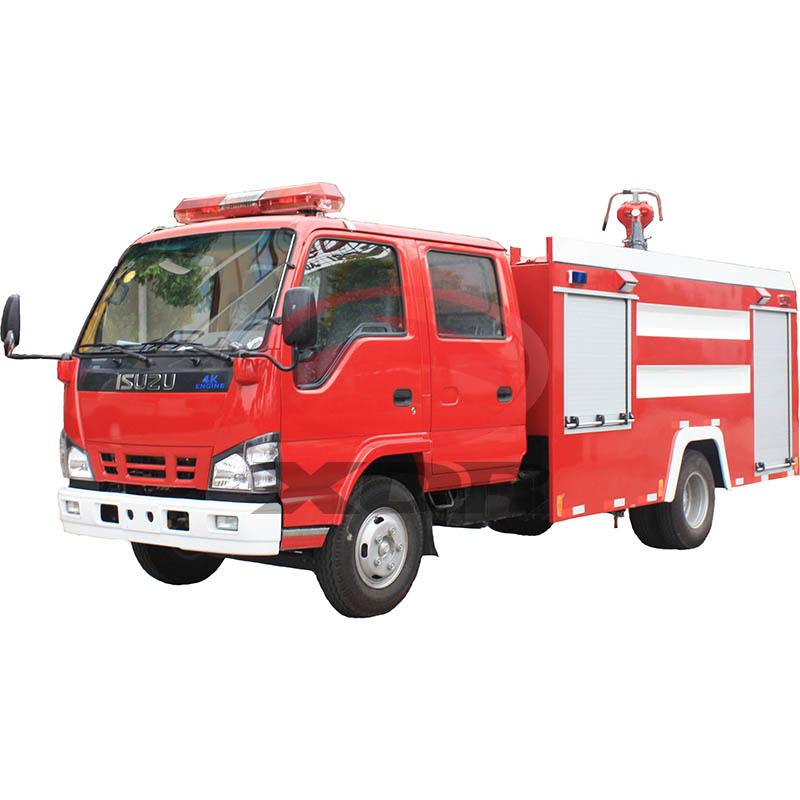

High quality Euro 5 emission fire truck
General	Vehicle Brand	XDR
	Chassis Brand	ISUZU
	Overall Dimension	6995x2180x3050mm
	GVW/Curb Weight	9650/6200kg
	Front/rear track	1680/1650mm
	Approach/departure angle	17/10 (°)
	Front/rear suspension	1110/2070
	Leaf spring	8/10+6
Cab	Cab Seat	2+4
	Air Conditioner	optional
Chassis	Drive Type	4x2
	Transmission	Manual
	Wheelbase	3815
	Tyre Specification	235/75R17.5
	Tyre No.	6+1
	Max Speed	90km/h
	Paint	Red or as request
Engine	Fuel Type	diesel
	Engie Model	4HK1-TC51
	Engine Brand	ISUZU
	Power	141kw/190hp
	Displacement	5193cc
	Emmission Standard	Euro 5
Superstructure	front and rear cupboard room, top mounted fire monitor,rear folding ladder, top mounted alarm and siren


Others	Tank capacity	4000 liters/4Tons/4m3
	water flow	30L/S
	Pump	PS30
	Pressure	1.0Mpa
	Fire distance	50m
Optional	Colour for optional, LHD and RHD for optional,Air conditioner for optional
