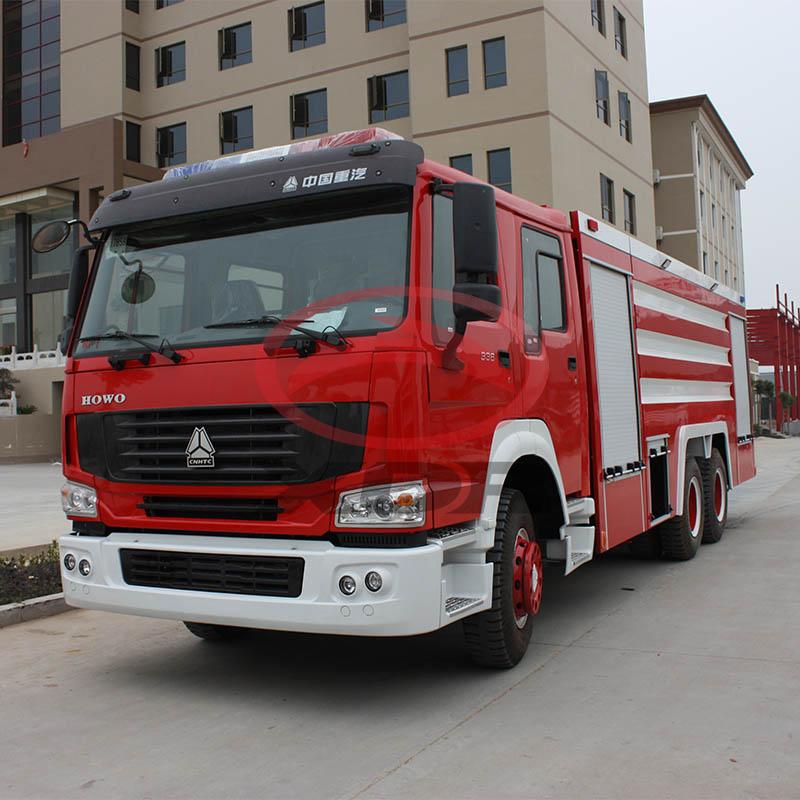

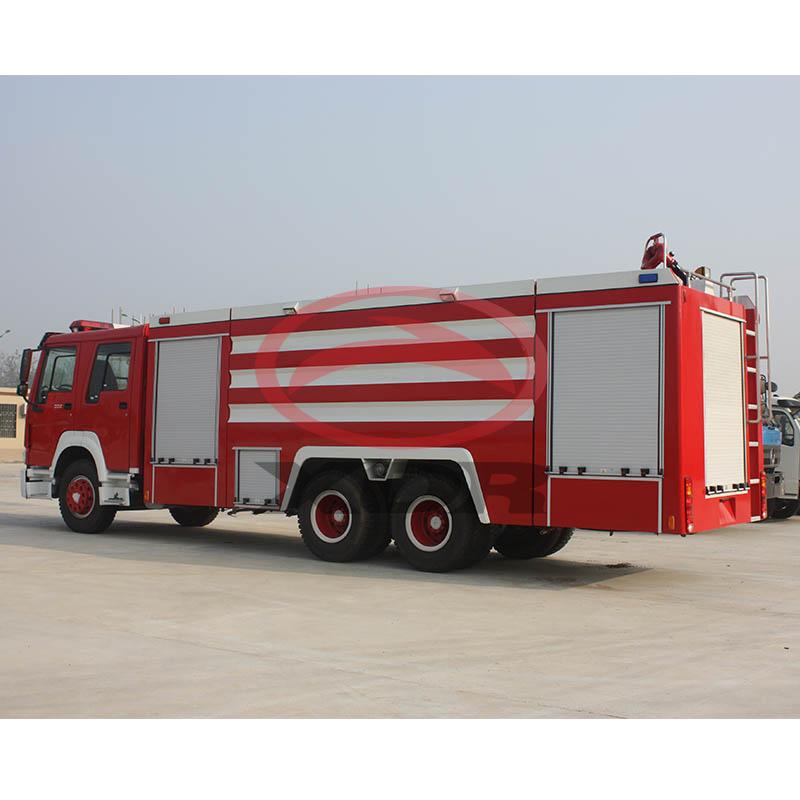

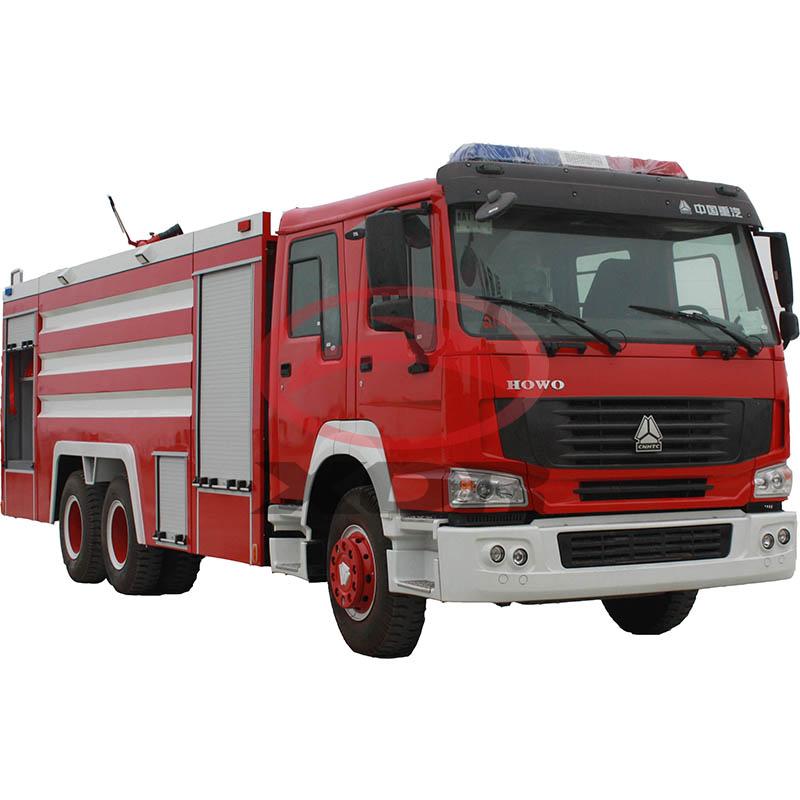

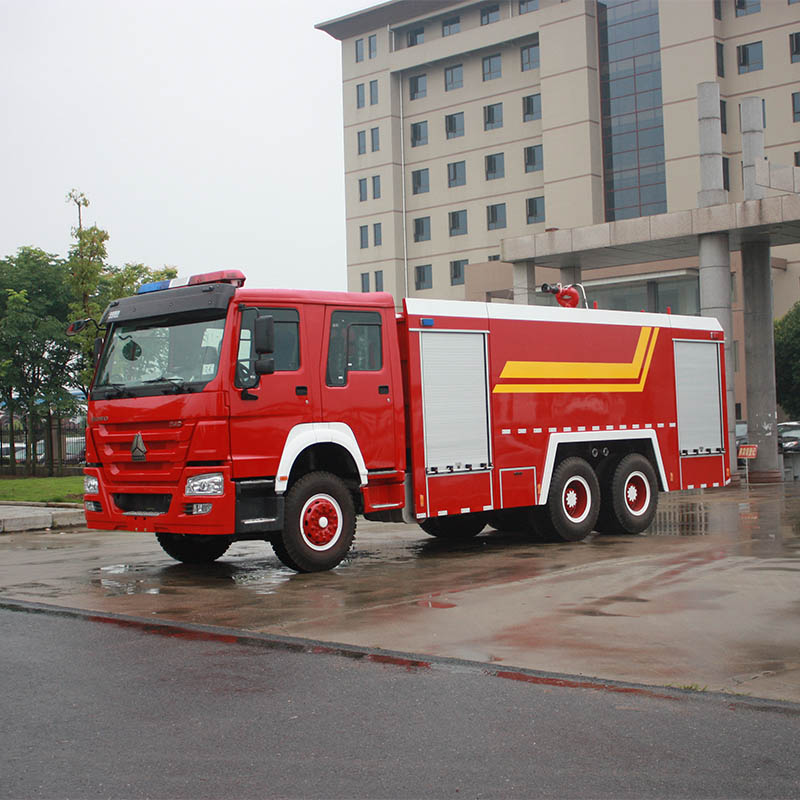

Top equipped fire monitor fire fighting truck

Category：Fire Truck
Views：1587
HOWO brand
50L/S water flow pump
more than 60m fire distance
Product Manual：1.Common, middle and high level fire fighting truck products for different countries and regions; 2.Dongfeng, ISUZU, HOWO,JAC,JMC,FOTON chassis for option to meet different requests; 3.Different c

BASIC INFO Inquiry

Top equipped fire monitor fire fighting truck
General	Vehicle Brand	XDR
	Chassis Brand	HOWO
	Overall Dimension	9780x2500x3470mm
	GVW/Curb Weight	25000/13050kg
	Front/rear track	2022/1830/1830mm
	Approach/departure angle	16/14 (°)
	Front/rear suspension	1500/2485mm
	Leaf spring	10/12,4/12
Cab	Cab Seat	2+4
	Air Conditioner	optional
Chassis	Drive Type	6x4
	Transmission	Manual
	Wheelbase	4325+1350
	Tyre Specification	11.00-20
	Tyre No.	6+1
	Max Speed	85km/h
	Paint	Red or as request
Engine	Fuel Type	diesel
	Engie Model	WD615.93E
	Engine Brand	HOWO
	Power	247kw/336hp
	Displacement	9726cc
	Emmission Standard	Euro 3
Superstructure	front and rear cupboard room, top mounted fire monitor,rear folding ladder, top mounted alarm and siren


Others	Tank capacity	12000 liters/12Tons/12m3
	Water flow	50L/S
	Pump	PS50
	Pressure	1.0Mpa
	Fire distance	≥60m
Optional	Colour for optional, LHD and RHD for optional,Air conditioner for optional
